Painting of exterior of Holy Name Catholic Church by Lamar Egart.

Holy Name of Jesus Catholic Church
Henderson, Kentucky

 Wicks Organ Company
Opus 2735
(1946/2009)
20 Ranks
GREAT

16' Bourdon - 12 Pipes
8’ Open Diapason -61 Pipes
8’ 2nd Open Diapason -61 Pipes
8’ Violincello -61 Pipes
8’ Melodia -61 Pipes
8’ Gemshorn -61 Pipes
4’ Octave -12 Pipes
4’ Violin -12 Pipes
4’ Hohl Flute -12 Pipes
4’ Gemshorn -12 Pipes
2 2/3’ Twelfth -61 Pipes NEW
2’ Super Octave -61 Pipes NEW
III Plein Jeu [SW]
8’ Trumpet -61 Pipes
8’ English Horn [SW]
4’ Clarion
Tremolo
MIDI

 SWELL

16’ Lieblich Gedeckt -12 Pipes
8’ Geigen Diapason -61 Pipes
8’ Gedeckt -61 Pipes
8’ Viol D’Orchestra -61 Pipes
8’ Viole Dolce -61 Pipes
8’ Celeste -49 Pipes
8’ Aeoline -61 Pipes
4’ Octave Geigen -12 Pipes
4’ Harmonic Flute -61 Pipes NEW
4’ Viole Dolce -12 Pipes
4’ Celeste -12 Pipes
2 2/3’ Nazard -19 Pipes
2’ Piccolo -12 Pipes NEW
III Plein Jeu -183 Pipes NEW
8’ English Horn -61 Pipes
Tremolo
MIDI

Glockenstern  NEW
(activated with thumb or
 toe piston, adjustable speed)

PEDAL

32’ Resultant
16’ Open Diapason -12 Pipes
16’ Bourdon [GT]
16’ Lieblich Gedeckt [SW]
8’ Prestant -32 Pipes NEW
8’ Violincello [GT]
8’ Flute [GT]
4’ Prestant -12 Pipes NEW
4’ Harmonic Flute [SW]
16’ Trumpet -12 Pipes
8’ Trumpet [GT]
4’ English Horn [SW]
MIDI

COUPLERS
Sw/Gt: 16, 8, 4
Sw/Ped: 8
Gt/Ped: 8, 4
Gt/Gt: 16, 4, Unison Off
Sw/Sw: 16, 4, Unison Off

COMBINATION ACTION:
12 Generals
(7-10 duplicated on toe studs)
5 Divisionals for each division
128 levels of Memory

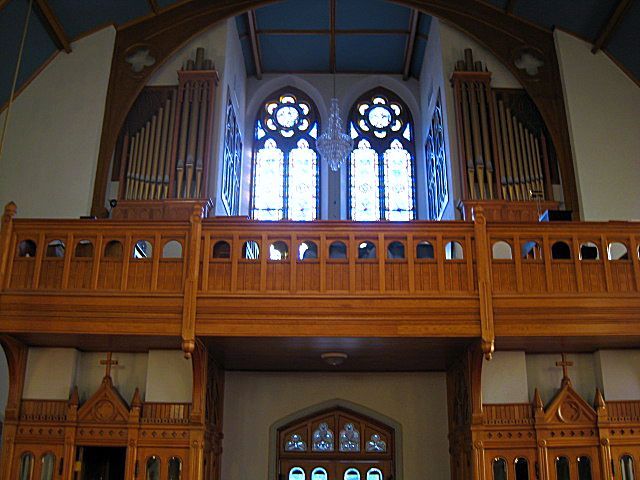

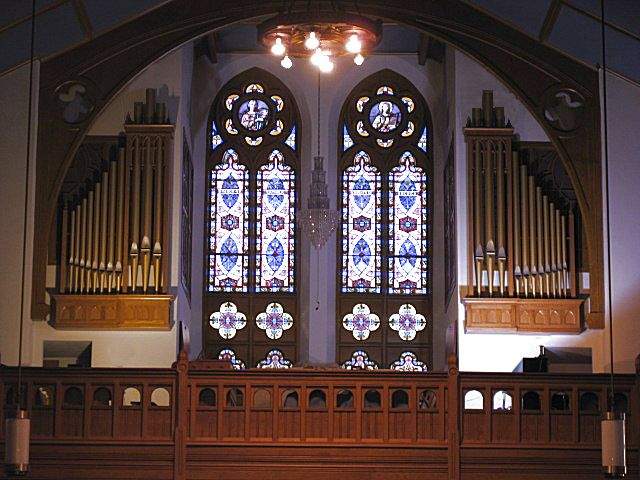

Holy Name, Henderson Ky, new facade pipes

ORGAN EXPANSION PROJECT
Wicks Organ Company/Sam Bowerman
2009

There was an older organ in this church before Wicks' Opus 2735 was installed in 1946, but no records of it have been located.  Some parishioners remember as children looking up at pipes that partially covered the windows in the rear choir loft gallery.  It's possible that some of the pipes from that organ were included in the 1946 installation, as some of the current ranks show evidence of earlier use (see photo below).

Consistent with a popular style of small church organ design in the early 20th century, the thirteen-rank Opus 2735 included a wide variety of colorful string stops and several hefty 8-foot-based diapason stops, as well as contrasting flute and reed ranks.  Brightness was achieved through the narrow scaling of some diapason and string ranks (the narrow scaling brings out the upper harmonics in individual pipes) rather than by adding higher-pitched ranks and mixtures.  These various timbres blended overhead in this high-ceiling room, filling it with a smooth, warm sound that "fit" the gentle nature of chant-based Roman Catholic liturgical and devotional music.

The organ had suffered (perhaps from some water damage) before the early 1980s when parish leaders decided to give it new life with a project that included switching to a solid state relay system, thus eliminating the mechanical-electrical linkages in the stop and coupler actions, and putting new bottom-boards on some of the chests.

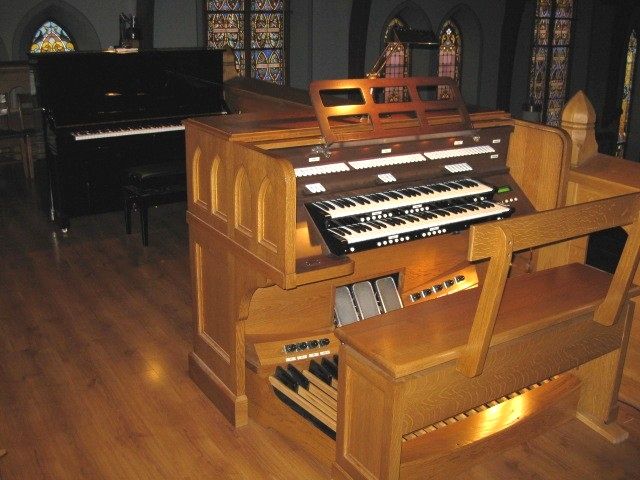

With this latest project in 2009, seven new ranks of pipes have been made to blend with the existing thirteen unified ranks to add some brightness, greater clarity of voices and increased independence of stops while maintaining the general historic character and tonal color of the instrument.  The new pipes are on newly added chests placed inside the existing chambers for maximum blending and dynamic options; except for the new pedal principal pipes which are placed in decorative oak casework on the outside of the chambers.  The console has been refurbished, including a multi-level combination memory system and a MIDI sequencer allowing record/playback (enabling the organist to listen to his/her own practicing from the pews downstairs) and synthesized sounds playable on the MIDI stops for special effects such as chimes (or other more "exotic" sounds). The relay system received further upgrading and most of the reed pipes were sent to the Wicks shop for refurbishing.  On-site tonal finishing was provided by Christopher Soer and Jonathan Lester.

                 -Neal Biggers, Director of Liturgy and Music


New Harmonic Flute (see small hole nearly half way up the pipe on the left)

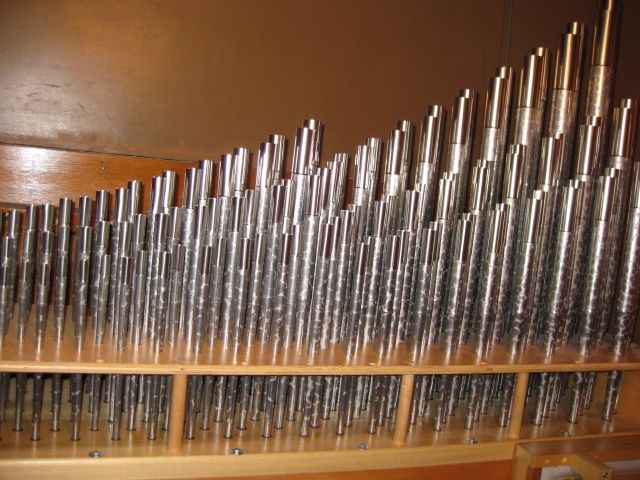

New Plein Jeu mixture

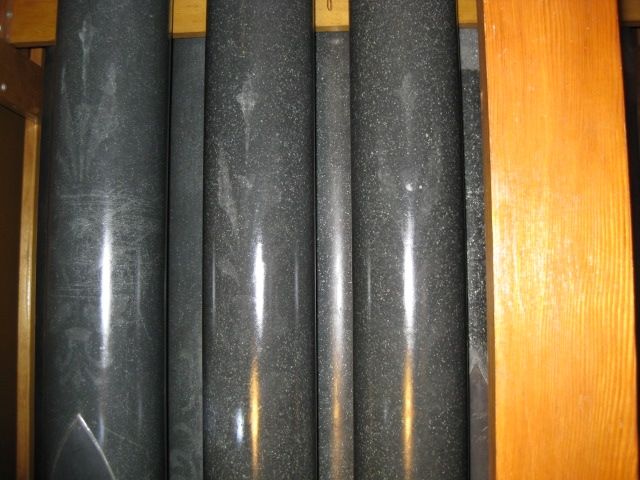

Stenciling on olf pipes
Evidence of former stenciling on existing pipes installed in1946, obviously from an earlier organ.
